Android #3: 뷰 바인딩 230228

바인딩 보기

– 레이아웃 XML 파일에 선언된 뷰 객체를 코드에서 쉽게 사용하는 방법

– 액티비티에서 findViewById() 함수를 사용하지 않고 레이아웃 XML 파일에 등록된 뷰 객체를 쉽게 사용할 수 있는 방법 제공

android {
	...
    viewBinding {
    	enabled = true
    }
}

– 레이아웃 XML 파일에 등록된 뷰 객체를 포함하는 클래스 자동 생성

– 자동으로 생성되는 클래스의 이름은 레이아웃 XML 파일의 이름입니다.

– 글자를 대문자로 하고 밑줄(_)을 제거하고 다음 단어를 대문자로 하고 ‘Binding’ 추가

– activity_main.xml → ActivityMainBinding

– item_main.xml → ItemMainBinding

– 자동으로 생성된 클래스의 inflate() 함수를 호출하여 바인딩 객체를 가져올 수 있습니다.

– 활성 화면을 출력하려면 binding.root를 setContentView() 함수에 전달합니다.


보기를 구성하고 조작할 수 있도록 하는 요소를 가져옵니다.

viewBinding {
    enalbled = true
}

위의 요소를 build.gradle에 추가합니다.

** 뷰가 있는 오브젝트를 생성해주세요..!

plugins {
    id 'com.android.application'
    id 'org.jetbrains.kotlin.android'
}

android {
    compileSdk 31

    defaultConfig {
        applicationId "com.example.proapplication"
        minSdk 21
        targetSdk 33
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
    kotlinOptions {
        jvmTarget="1.8"
    }

    viewBinding {
        enalbled = true
    }
}

dependencies {

    implementation 'androidx.core:core-ktx:1.7.0'
    implementation 'androidx.appcompat:appcompat:1.6.1'
    implementation 'com.google.android.material:material:1.8.0'
    implementation 'androidx.constraintlayout:constraintlayout:2.1.4'
    testImplementation 'junit:junit:4.13.2'
    androidTestImplementation 'androidx.test.ext:junit:1.1.5'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.5.1'
}

모두..


build.gradle의 android{…} 중괄호 내부

viewBinding {
    enabled = true
}

추가 후 즉시 동기화,

package com.example.proapplication1

import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.example.proapplication1.databinding.ActivityMainBinding

class MainActivity : AppCompatActivity() {
    private var mBinding: ActivityMainBinding? =null
    private val binding get() = mBinding!
!
override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) //setContentView(R.layout.activity_main) //setContentView(R.layout.activity_tuesday) //setContentView(R.layout.activity_tuesday2) mBinding = ActivityMainBinding.inflate(layoutInflater) setContentView(binding.root) binding.tvMessage.setText("안녕하세요 하히입니다.
") } override fun onDestroy() { mBinding = null super.onDestroy() } }

주요 활동들

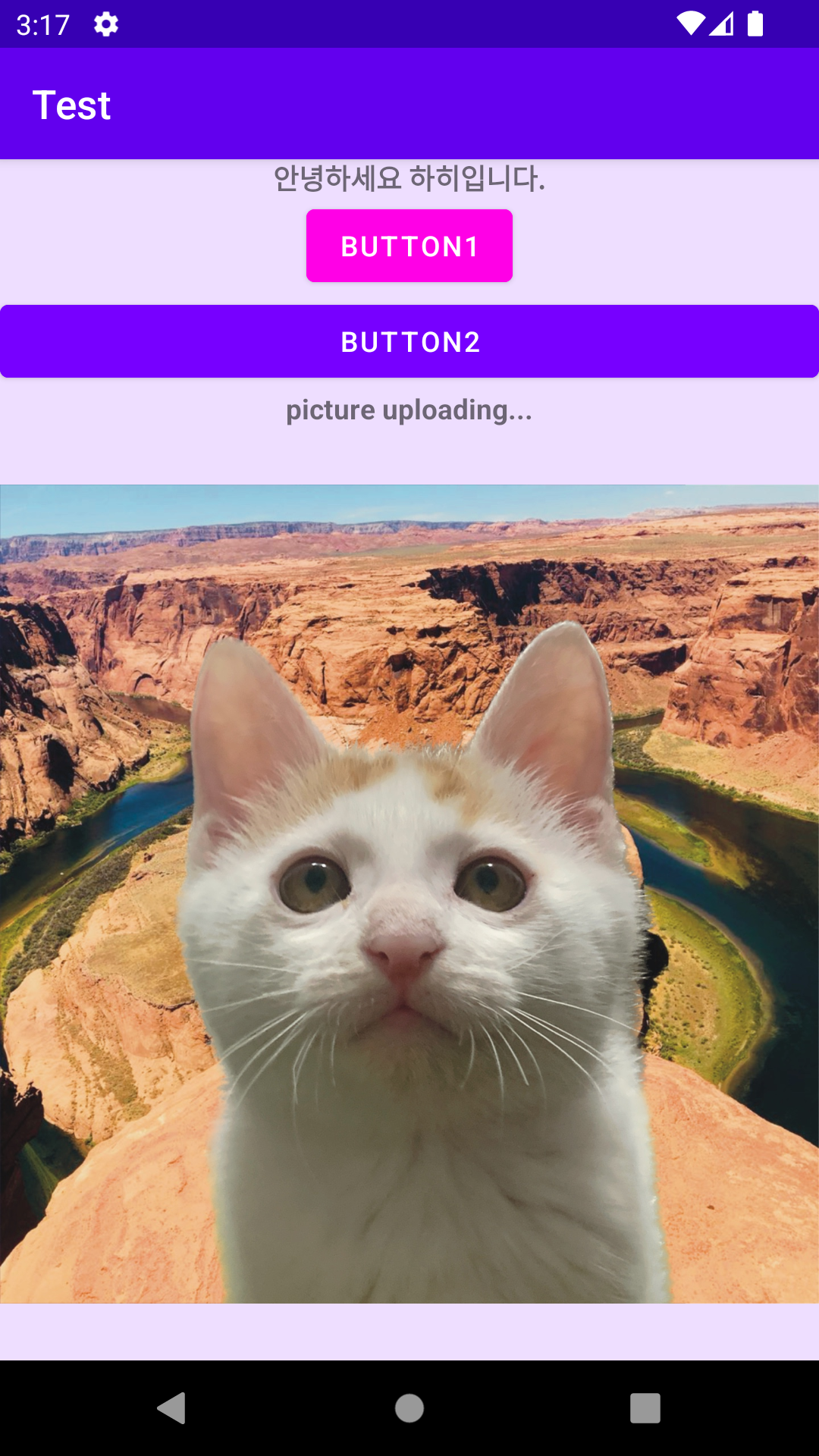

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schmas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center"
    android:background="#EEDEFF"
    tools:context=".MainActivity">

    <TextView
        android:id="@+id/tv_message"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:text="Hello Hahee" />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="BUTTON1"
        android:backgroundTint="#FF00E6" />
    <Button
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="BUTTON2"
        android:backgroundTint="#7700FF" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:text="picture uploading..." />
    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="http://hhahee./m/@drawable/mallang" />
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:text="Mallang, CAT, 한말랑" />

</LinearLayout>

activity_main.xml

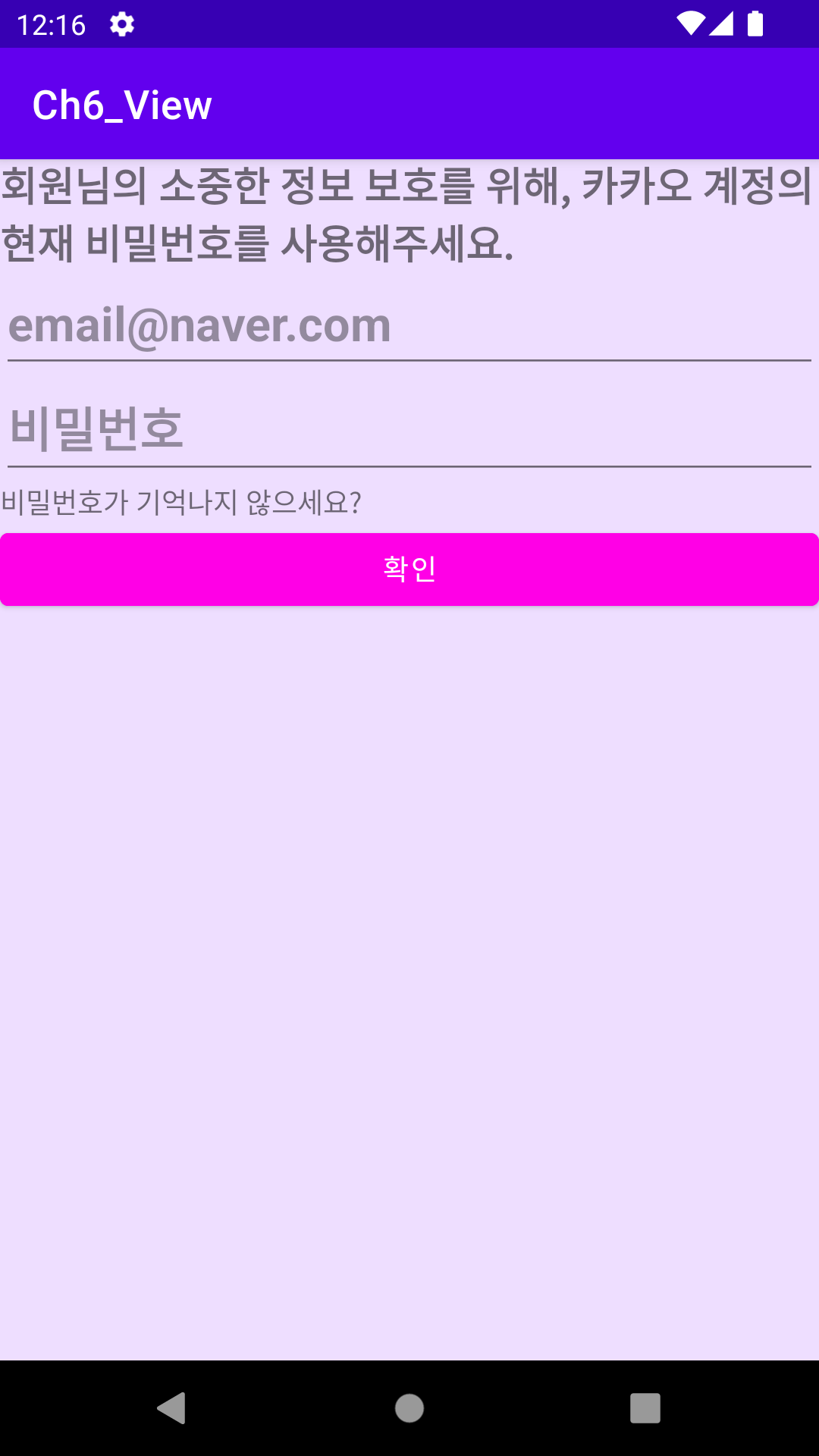

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schmas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"

    android:background="#EEDEFF"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:textSize="20dp"
        android:text="회원님의 소중한 정보 보호를 위해, 카카오 계정의 현재 비밀번호를 사용해주세요." />

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/email"
        android:textStyle="bold"
        android:textSize="24dp"
        android:inputType="textUri"
        android:hint="[email protected]" />

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/pwd"
        android:textStyle="bold"
        android:textSize="24dp"
        android:inputType="textPassword"
        android:hint="비밀번호" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="비밀번호가 기억나지 않으세요?" />

    <Button
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="확인"
        android:backgroundTint="#FF00E6" />

</LinearLayout>
